Vishay 293D336X96R3A2TE3固體SMD鉭電容
發布時間：2026-01-16 08:43:19 瀏覽：163

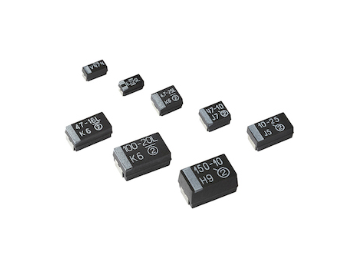

Vishay 293D系列是一款高可靠性的固態鉭貼片電容，專為工業、通信和通用電子設備設計。與其他電容器相比，Vishay威世公司的這款
293D336X96R3A2TE3 鉭質固態電容器具有更高的單位體積電容值，并且尺寸更小。它能夠承受 6.3V直流電壓。這款固態電容器的最大工作溫度為
125°C。其漏電流為 2μA。其電容值為 33μF。容差為 10%。該產品長 3.2mm、高 1.6mm、深 1.6mm。
Vishay 293D系列鍵參數
容值范圍：0.10 μF ～ 1000 μF
額定電壓：4 V ～ 75 V(對應 85 °C)
工作溫度：-55 °C ～ +125 °C(>85 °C 需自動降額)
容差：±5 % / ±10 % / ±20 % 可選
ESR：最低 0.2 Ω(100 kHz，視容值/電壓/殼號而定)
紋波電流：最高 0.64 A (100 kHz)
典型應用場景
工業控制：PLC I/O 模塊、伺服驅動器電源去耦
通信基礎設施：5G 小基站、RRU 功放板、交換芯片旁路
汽車電子：ECU 電源、BMS 采樣板、車載信息娛樂系統
通用電子：高端儀器儀表、FPGA/CPU 負載點轉換器

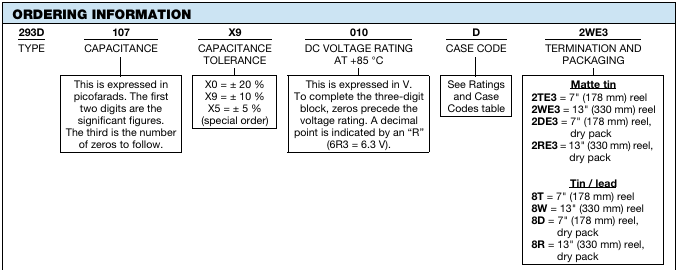

型號
| 293D336X0004A2TE3 | 293D336X9010D2TE3 | 293D336X0035E2DE3 |
| 293D336X0004A2WE3 | 293D336X9010D2WE3 | 293D336X0035E2TE3 |
| 293D336X0004B2TE3 | 293D336X9010D8T | 293D336X0035E8T |
| 293D336X0004B2WE3 | 293D336X9016B2DE3 | 293D336X06R3A2TE3 |
| 293D336X0004C2TE3 | 293D336X9016B2TE3 | 293D336X06R3A2WE3 |
| 293D336X0004C2WE3 | 293D336X9016B2WE3 | 293D336X06R3A8T |
| 293D336X0004D2TE3 | 293D336X9016B8T | 293D336X06R3B2TE3 |
| 293D336X0004D2WE3 | 293D336X9016C2TE3 | 293D336X06R3B2WE3 |
| 293D336X0010B2TE3 | 293D336X9016C2WE3 | 293D336X06R3B8T |
| 293D336X0010B2WE3 | 293D336X9016C8T | 293D336X06R3C2TE3 |
| 293D336X0010B8T | 293D336X9016D2TE3 | 293D336X06R3C2WE3 |
| 293D336X0010C2TE3 | 293D336X9016D2WE3 | 293D336X06R3C8T |
| 293D336X0010C2WE3 | 293D336X9016D8T | 293D336X5004B2TE3 |
| 293D336X0010C8T | 293D336X9020C2TE3 | 293D336X5010B2TE3 |
| 293D336X0010D2TE3 | 293D336X9020C2WE3 | 293D336X5010C2TE3 |
| 293D336X0010D2WE3 | 293D336X9020C8T | 293D336X5010C2WE3 |
| 293D336X0010D8T | 293D336X9020C8W | 293D336X5010D2TE3 |
| 293D336X0016B2TE3 | 293D336X9020D2TE3 | 293D336X5016D2TE3 |
| 293D336X0016B8T | 293D336X9020D2WE3 | 293D336X5016D2WE3 |
| 293D336X0016C2TE3 | 293D336X9020D8T | 293D336X5020D2TE3 |
| 293D336X0016C2WE3 | 293D336X9025D2TE3 | 293D336X9004A2TE3 |
| 293D336X0016C8T | 293D336X9025D2WE3 | 293D336X9004A2WE3 |
| 293D336X0016D2TE3 | 293D336X9025D8T | 293D336X9004B2TE3 |
| 293D336X0016D2WE3 | 293D336X9025E2DE3 | 293D336X9004B2WE3 |
| 293D336X0016D8T | 293D336X9025E2RE3 | 293D336X9004C2TE3 |
| 293D336X0016D8W | 293D336X9025E2TE3 | 293D336X9004C2WE3 |
| 293D336X0020C2TE3 | 293D336X9025E2WE3 | 293D336X9004D2TE3 |
| 293D336X0020C2WE3 | 293D336X9025E8T | 293D336X9004D2WE3 |
| 293D336X0020D2TE3 | 293D336X9035E2TE3 | 293D336X9010B2TE3 |
| 293D336X0020D2WE3 | 293D336X96R3A2DE3 | 293D336X9010B2WE3 |
| 293D336X0020D8T | 293D336X96R3A2TE3 | 293D336X9010B8T |
| 293D336X0025D2TE3 | 293D336X96R3A2WE3 | 293D336X9010B8W |
| 293D336X0025D2WE3 | 293D336X96R3A8T | 293D336X9010C2TE3 |
| 293D336X0025D8T | 293D336X96R3B2TE3 | 293D336X9010C2WE3 |
| 293D336X0025E2TE3 | 293D336X96R3B2WE3 | 293D336X9010C8T |
| 293D336X0025E2WE3 | 293D336X96R3B8T |
|
| 293D336X0025E8T | 293D336X96R3C2TE3 |
|
| 293D336X0035D2TE3 | 293D336X96R3C2WE3 |
|
| 293D336X0035D8T | 293D336X96R3C8T |
|
更多vishay相關產品信息可咨詢立維創展。
